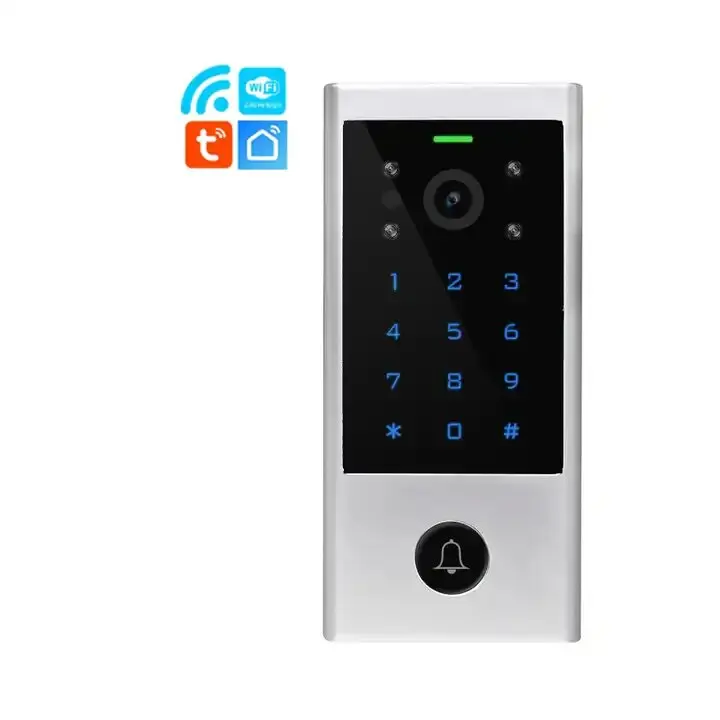

Tuya App Remote Control Smart Wifi RFID and Keypad Access Control System with Duplex Video Intercom
$42.00
描述
|

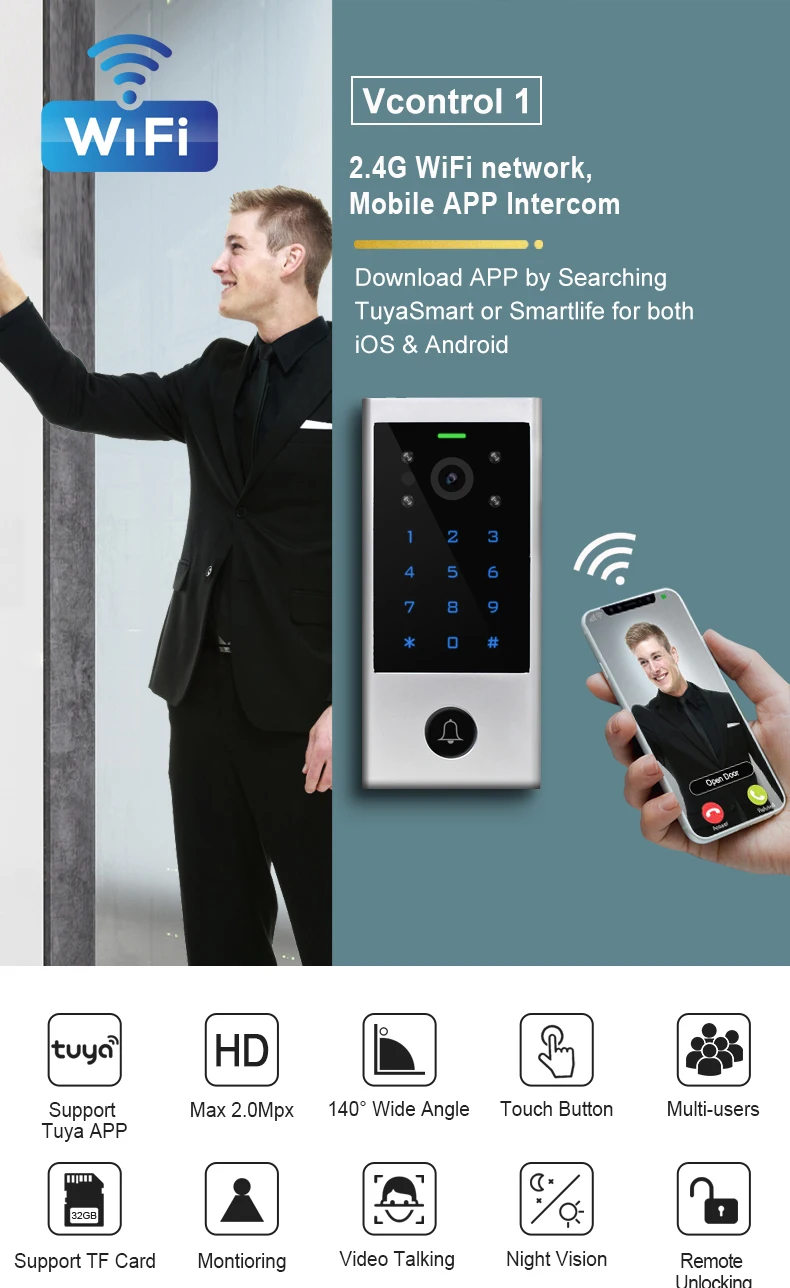

Video Intercom
|
Network
|
2.4G WiFi connection
|
|
Pixel
|
2.0Mpx (1080P)
|
|
|
Visual Angle
|
Horizontal 140° wide angle
|
|
|
Night Vision
|
IR-CUT (Colorful at daytime, black and white at night)
|
|
|
Extended Memory
|
TF card with unlimited capacity
|
|
|
Intercom
|
Full duplex voice intercom
|
|
|
Other Functions
|
Motion detection; Playback; Take picture/video; Unlock remotely
|
|
|
Access Control
|
User Capacity
Common User Visitor User Panic User |
1000
988 10 2 |
|
PIN Length
|
4~6 digits
|
|
|
Proximity Card Reader
Radio Technlogy Read Range |
EM or Mifare
125KHz/13.56MHz 2~6cm |
|
|
Wiring Connections
|
Relay output, exit button, alarm, door contact, Wiegand input/output
|
|
|
Relay
Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common)
0~99 Seconds (5 seconds default) 2 Amp Maximum |
|
|
Wiegand Interface
PIN Output |
EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)
Mifare card version:Wiegand 26~44 bits input & output (Factory default: Wiegand 34bits) 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) |
|
|
Electric
|
Operating Voltage
Idle Current Active Current |
DC 12V
≤ 150mA ≤ 250mA |
|
Environment
Operating Temperature Operating Humidity |
Indoor
-20°C ~ 60°C (-4°F ~ 140°F) 0%RH ~ 86%RH |
|
|

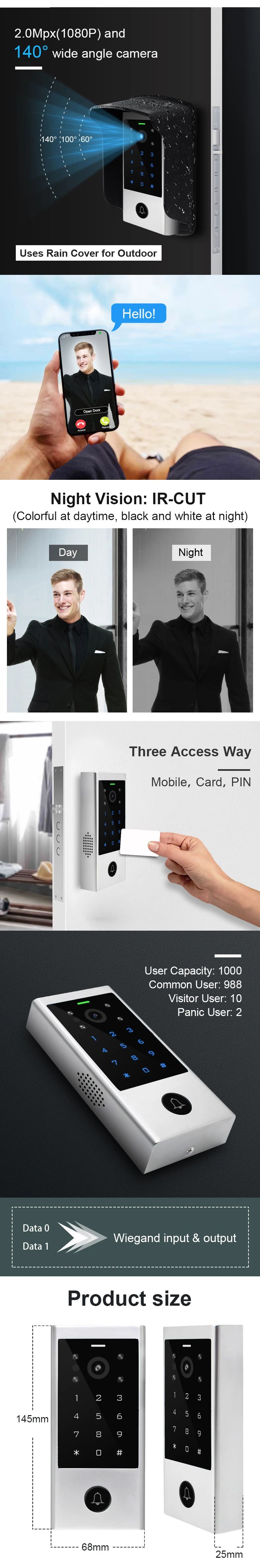

Physical
Color Dimensions Unit Weight Shipping Weight |
Zinc-Alloy
Sliver & Black L145 x W68 x H25 (mm) 450g 550g |
其他信息
| 重量 | 0.6 公斤 |
|---|---|
| 尺寸 | 16 × 8 × 4 厘米 |
| Brand |
Msmart |
| Network |
WiFi |
| Voltage |
12V |
| Function |
Fingerprint Rfid Access Control Reader fingerprint biometric reader |
| IP rate |
IP68 |
