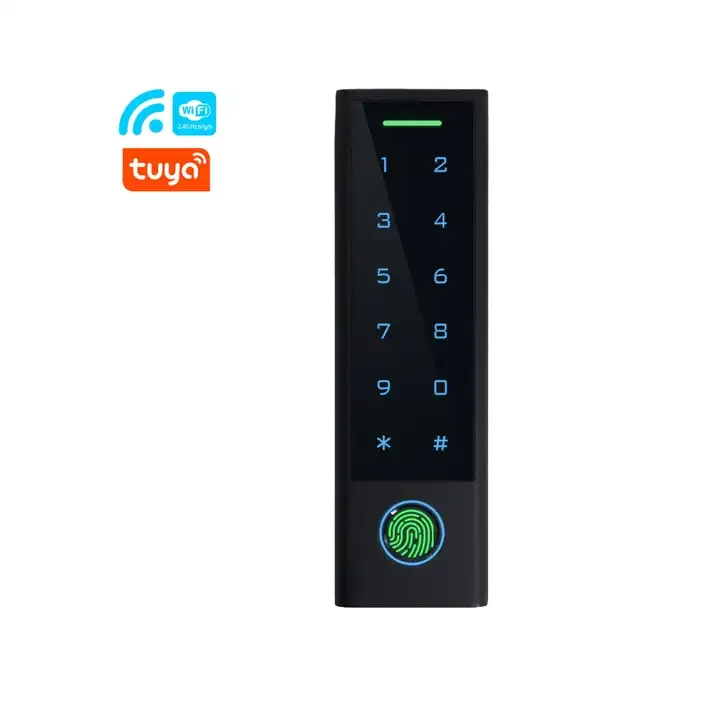

Tuya WiFi Smart Life Biometric Fingerprint Access Control with Video Control Alexa
$26.00
描述
|
User Capacity
Common User Visitor User Panic User |
Hardware User: 1000 APP User: 500
988 (100 Fingerprint Users + 888 PIN/Card Users) 10 2 |
|
PIN Length
|
4~6 digits
|
|
Operating Voltage
Idle Current Active Current |
12~18V DC
≤ 60mA ≤ 150mA |
|
Proximity Card Reader
Radio Technlogy Read Range |
EM or Mifare
125KHz/13.56MHz 2~6cm |
|
Wiring Connections
|
Relay output, exit button, alarm, door contact, Wiegand input/output
|
|
Relay
Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common)
0~99 Seconds (5 seconds default) 2 Amp Maximum |
|
Wiegand Interface PIN Output |
EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)
Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits) 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) |
|
Environment
Operating Temperature Operating Humidity |
Meets IP66
-30°C ~ 60°C (-22°F ~ 140°F) 0%RH ~ 98%RH |
|
Physical
Color Dimensions Unit Weight Shipping Weight |
Zinc-Alloy
Sliver & Black L150 x W45 x H22 (mm) 330g 405g |
其他信息
| 重量 | 0.5 公斤 |
|---|---|
| 尺寸 | 17 × 5 × 3 厘米 |
| Brand |
Msmart |
| Network |
WiFi |
| Voltage |
DC12V |
